Features Overview

1 Saddle Multitasking CNC Lathe with Sub-Spindle

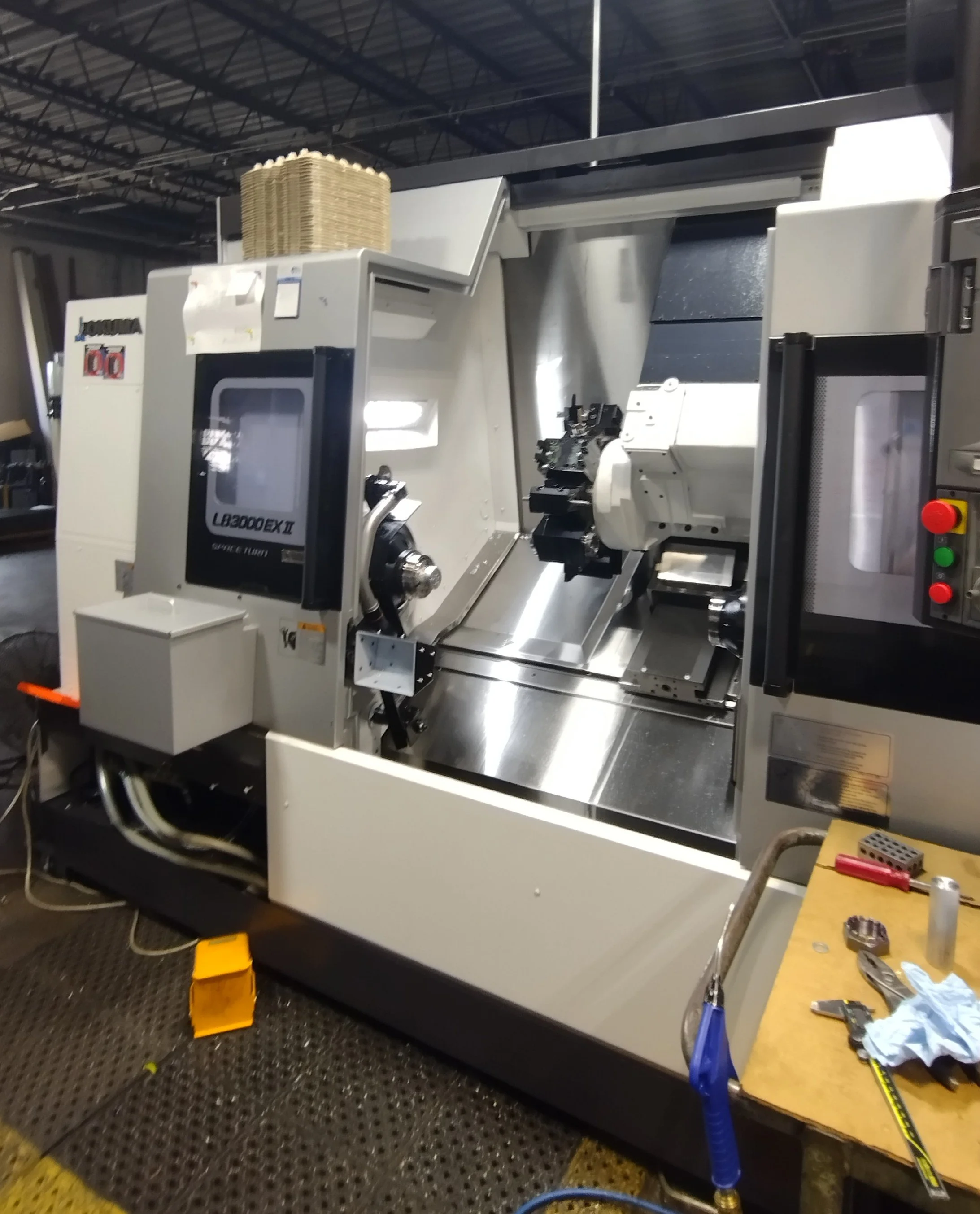

* Okuma LB3000 EX II MYW

* Max. Turn Diameter Ø13.39 in. Ø340 mm

* Swing Over Saddle Ø18.5 in. Ø470 mm

* Swing Over Bed Ø22.83 in. Ø580 mm

* X-axis Linear Travel 10.24 in. 260 mm

* Y-axis Travel 4.53 (+2.76 / -1.77) 115 (+70 / -45)

* Z-axis Travel (x800) 39.76 in. 1010 mm

* Spindle Speed Range 45-4500rpm

* Sub-Spindle speed range 50-6000rpm

* Main Spindle Power 30HP

* Sub-Spindle Power 15HP

* Live Tooling w/Max 45-6000RPM

* Cylinder & Draw Tube ID Ø2.598 in Ø66 mm

* 10” - 3 Jaw Chuck

* Royal QC-65 Collet Chuck

Turning w/Live Tooling

Okuma L3000M-ex1000

1. Max Swing Over Bed: Ø20.47"

2. Max Turn Diameter: Ø11.81"

3. Z Axis Travel: 41.34"

4. Spindle Max RPM: 3,800 RPM

5. Max Barfeed Diameter: Ø2.75

6. Live Tooling w/ Max RPM: 6,000RPM

7. Main Spindle Power: 30HP

8. 10” - 3 jaw chuck

9. Royal QC-65 collet chuck

10. MT5 Tailstock
